SCP over an SSH tunnel

The Chemistry workstations do not accept ssh connections from machines outside the Chemistry network. The only way to make an inward ssh connection is to use the VPN service, or to log into the bastion service, and then ssh on to the workstation you want. If you not able to use our VPN service (for example, some networks block VPN connections) this makes copying files between machines difficult. There is a way round this though, and this document describes it.

Linux and OSX

Let us say that you want to connect to a workstation, called "romulus" somewhere in the department, and your username is spqr1.

You first need to obtain the fully qualified hostname of romulus, so when logged into romulus:
```
spqr1@romulus:~$ hostname -f
romulus.ch.cam.ac.uk
```
On your laptop set up an ssh config file. This file is called config and should be put in the .ssh directory in your home directory. It should contain something like:
```
Host romulus.ch.cam.ac.uk romulus
  User spqr1
  Hostname romulus.ch.cam.ac.uk
  ProxyCommand ssh spqr1@barbican.ch.cam.ac.uk -W romulus.ch.cam.ac.uk:22
```
Now you can ssh or scp to 'romulus' from your laptop when outside the department and you will be connected to romulus via barbican. If you have not set up any ssh public key authentication you'll have to type your password twice, once for barbican and once for romulus.

Windows

You can accomplish this with WinSCP. Again, determine the fully qualified hostname of the computer you wish to connect to, in this case "romulus".

Enter the fully qualified hostname e.g. "romulus.ch.cam.ac.uk" under the hostname and select SCP for "File protocol". Enter your CRSID under Username and your AD password. Once you have entered all the information you may also wish to save the session, by giving it a name and clicking "Save As".

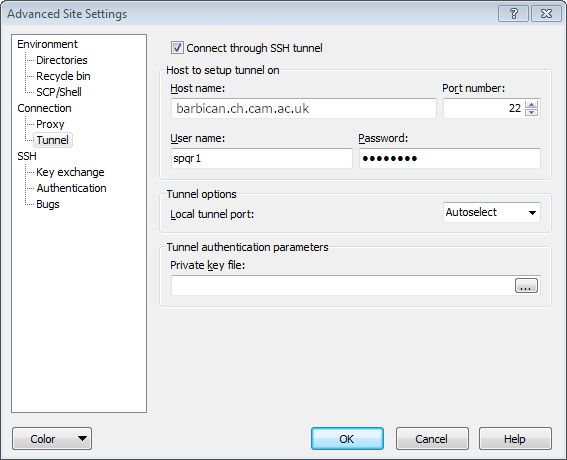

Click "Advanced" and under Connection->Tunnels tick the "Connect through SSH tunnel" box. Under hostname, enter "barbican.ch.cam.ac.uk". Enter your CRSID and AD password, click "OK", then "Login".
