Connecting to a linux workstation by VNC

You can connect to an existing desktop session on your linux workstation with VNC.

Prerequisites

On your workstation you will need a VNC server:

sudo apt-get install x11vnc

On the machine you are connecting from you will need a VNC client. We suggest remmina (linux), Real VNC Viewer (Windows, OSX).

Connecting to your workstation

If you have an existing desktop session running on your linux workstation, you should be able to connect remotely to it with VNC. To do this, simply lock your screen before you leave it (Ctrl+Alt+L).

ssh to your workstation and forward some ports (in this example just called workstation). You will need to be on the department network (e.g VPN, ChemNet):

ssh -L 5900:localhost:5900 CRSID@workstation.ch.private.cam.ac.uk

# Set a VNC password (you should only need to do this once).
x11vnc -storepasswd

# Start the VNC server
x11vnc -clientdpms -ncache 10 -rfbauth ~/.vnc/passwd -display :0 -localhost

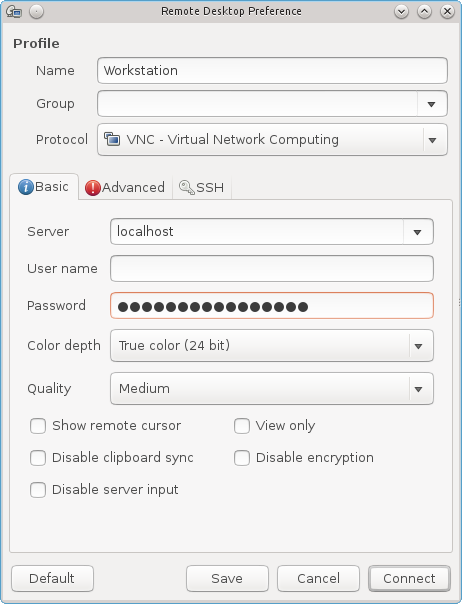

Then just connect your vnc client to localhost.

Connecting through a bastion host

For the following commands you will need to substitude CRSID for your CRSID. You will also need to substitiute workstation.ch.private.cam.ac.uk with the fully qualified hostname of your workstation. You can obtain this by typing "hostname -f" in a terminal window.

Method 1

ssh -L 5900:localhost:5900 -J CRSID@barbican.ch.cam.ac.uk CRSID@workstation.ch.private.cam.ac.uk

(If ssh complains that J is an unknown option, use two steps to achieve the same goal:

ssh -L 5900:localhost:5900 CRSID@barbican.ch.cam.ac.uk

# then
ssh -L 5900:localhost:5900 CRSID@workstation.ch.private.cam.ac.uk

)

After that, start the VNC server and point your client at localhost

Method 2 (Proxy Command)

In your ~/.ssh/config file, add the following lines substituting in the fully qualified name of your workstation:

Host workstation
    User CRSID
    Hostname workstation.ch.private.cam.ac.uk
    ProxyCommand ssh CRSID@barbican.ch.cam.ac.uk -W workstation.ch.private.cam.ac.uk:%p

Then ssh to "workstation":

ssh -L 5900:localhost:5900 workstation

then start the VNC server and point your client at localhost.

Method 3 (Using Putty)

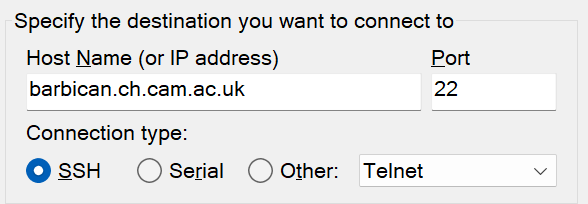

If you are trying to connect from a windows machine you may like to use putty to set up the tunneling. Under Session enter the following.

Then under Connection->SSH->Tunnels enter the following and click on Add.

You should then see the tunnel listed:

At this point under Session->Saved Sessions, you may wish to give it a name and save the settings. Click "Open" and this should ssh to barbican forwarding those ports. When prompted for a username and password, enter your CRSID and your admitto credentials. When you have succesfully logged ssh to your workstation:

ssh -L 5900:localhost:5900 CRSID@workstation.ch.private.cam.ac.uk

and start the vnc server, then point your vnc client at localhost.
