Melville Laboratory for Polymer Synthesis



UV Reactor

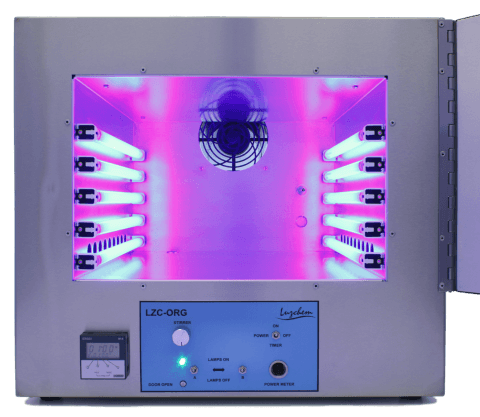

Luzchem’s LZC-ORG photoreactor package is designed for organic photochemistry applications. It is configured for side irradiation, and includes a recessed magnetic stirrer, safe exhaust system and a digital timer.



Booking required!

(Calendar on the right side)





Unit Specifications:


The LZC-ORG photoreactor is equipped with 10 lamps (5 on each side).








Chamber Temperature: Maintained to 3-4 ºC above room temperature


Humidity: Must be between 0% and 95% (non-condensing)


Portable Carousel

  • Designed to accommodate samples in test tubes of up to 16 mm in diameter.
  • Diameter: 5”
  • Bottom plate height: approx. 2.5” above chamber floor
  • Can hold 16 tubes
  • Speed: 4 RPM

Magnetic Stirrer:

  • Speed: adjustable
  • Min speed: 100 RPM
  • Max speed: 1000 RPM
  • Max volume that can be stirred: 0.26 gallons (1L)
